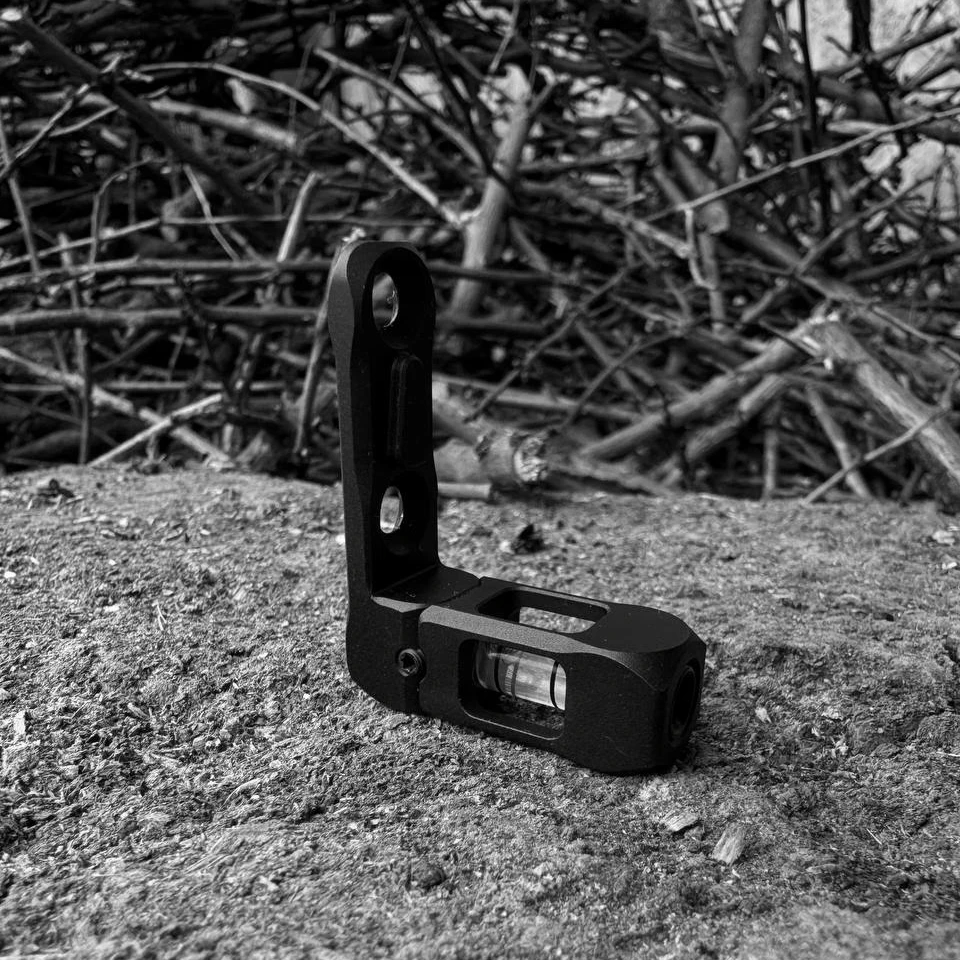

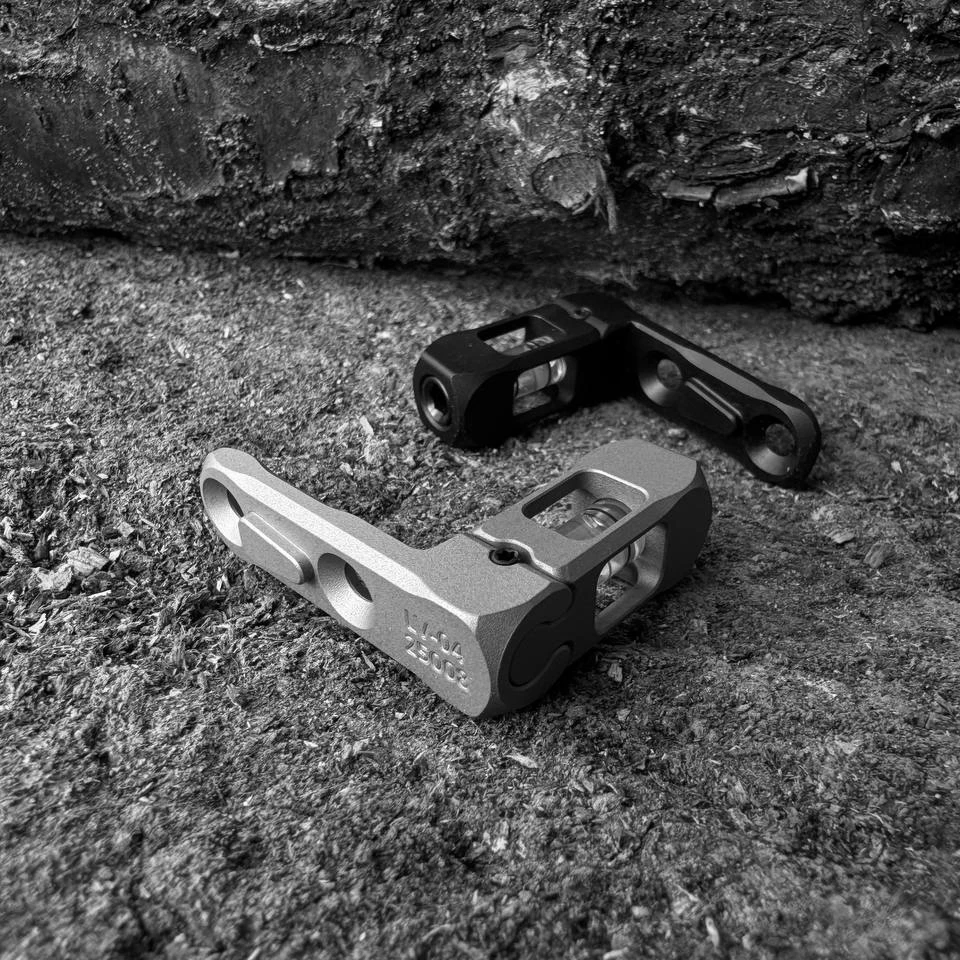

LV-04 Scope Mount Bubble Level
LV-04 Scope Mount Bubble Level is a modular rifle leveling solution designed for direct installation on DAVIKA scope mounts via the SMAI interface, ensuring precise cant control during long-range shooting.
Description
The DAVIKA LV-04 is a precision-engineered bubble level developed specifically for integration with DAVIKA scope mounts using the proprietary SMAI mounting interface. Unlike rail-mounted or scope tube levels, the LV-04 becomes a structural part of the optic mounting system, delivering stable, repeatable, and highly accurate rifle leveling.
The LV-04 was designed to combine the advantages of compact under-objective levels and side-offset configurations. Depending on the shooter’s preference and mission requirements, the level can be mounted directly beneath the objective lens for maximum protection or configured with a side offset for enhanced visual access without changing shooting position.
By integrating directly into the scope mount, the LV-04 eliminates additional interfaces and mounting tolerances, resulting in a clean, professional setup optimized for precision rifles and long-range applications.
Features
- Direct integration with DAVIKA scope mounts via SMAI interface
- Multiple mounting configurations: under-objective or side-offset
- No reliance on Picatinny rail alignment
- Stable and repeatable positioning within the scope mounting system
- Compact and protected installation option
- Enhanced visual monitoring option with side offset
- CNC-machined for precise geometry and fit
- Designed for professional long-range shooting setups

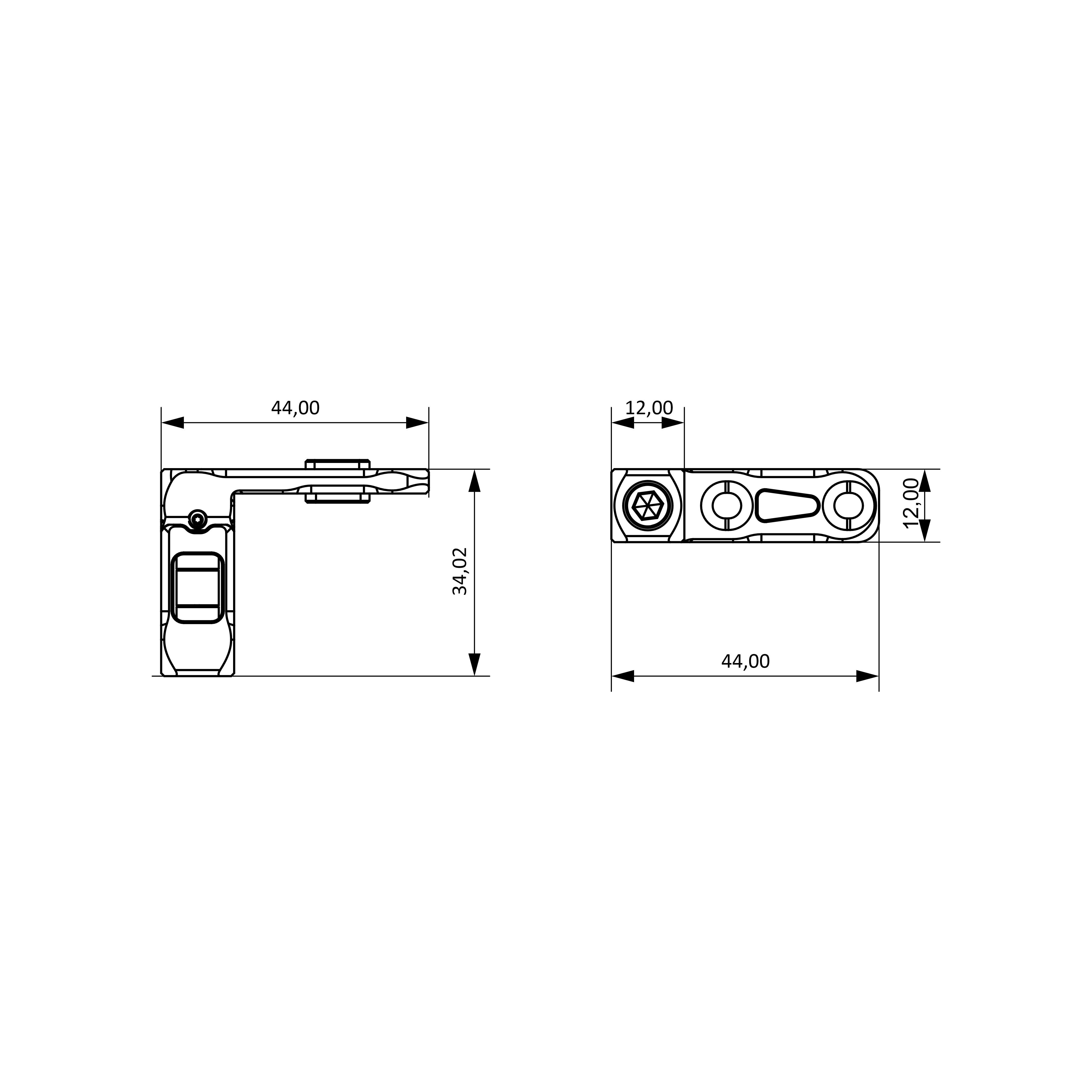

Dimensions
Specifications
- Name: Level for Scope Mount
- Model: LV-04
- Mount: SMAI
- Material: 7075-T6 Aluminum
- Coating: MIL-A-8625 Type III (Hard Anodizing)
