RSM-01 Scope Rings
Description:
The RSM-01 is a set of high-precision, heavy-duty scope rings specifically engineered for bolt-action rifles and long-range shooting. Designed as an alternative to scope mounts, these individual rings allow for flexible positioning on the Picatinny rail to accommodate various action lengths and receiver designs. This scope rings are designed for uncompromising zero retention and scope stability even under the extreme recoil of magnum calibers.
Modifications:
Diameter:
30
MM
34
MM
40
MM
Tilt:
0
MIL
0
MOA
Height:
30
MM
34
MM
38
MM
Color:
Black
FDE
Modifications:

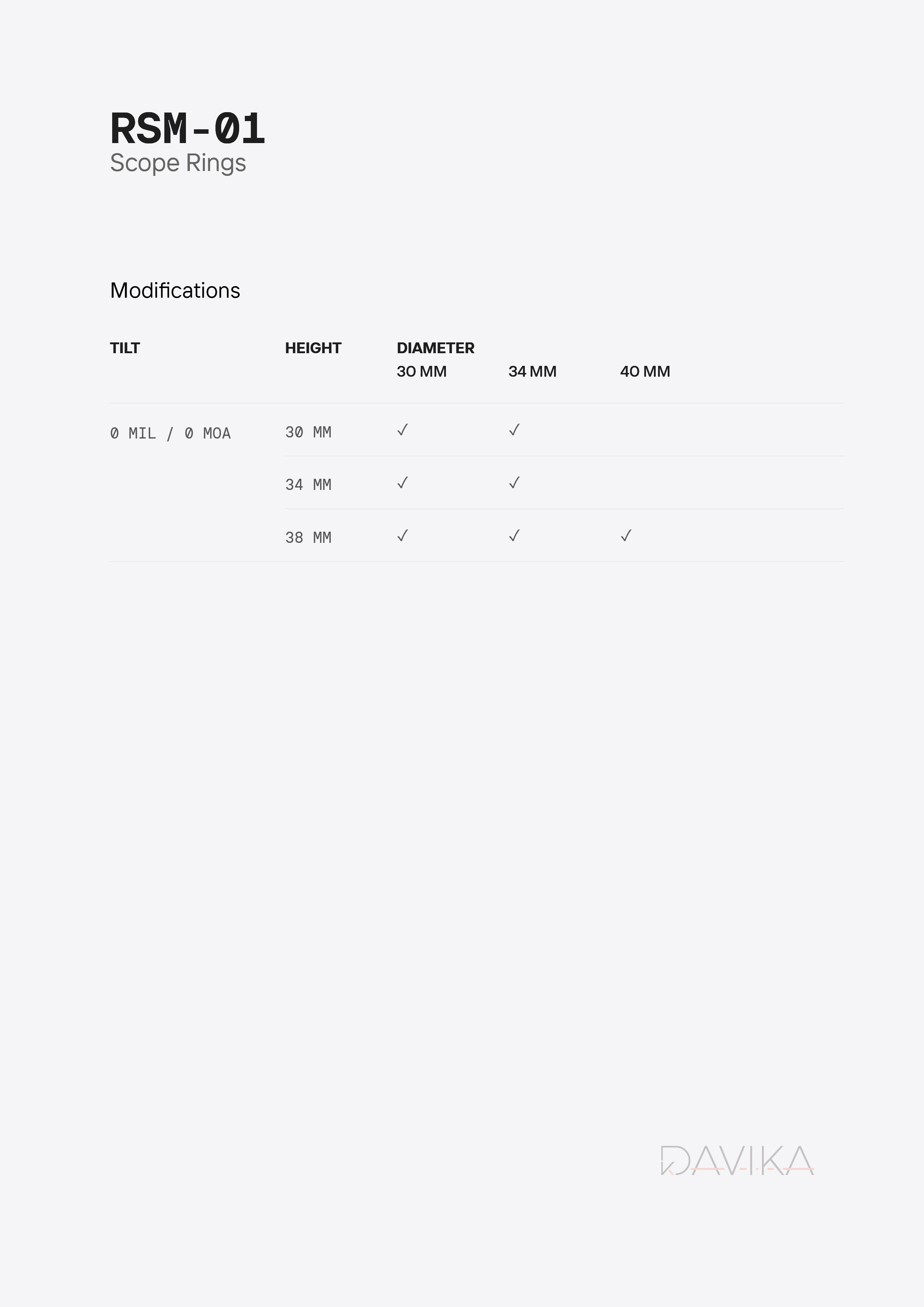

Available combinations.pdf
Orientation:
No items found.
Platform Compatibility:
Bolt action rifles up to .338 LM
External/Internal Compatibility:
Optical sights with a tube diameter of 30mm to 40mm
Benefits:
- Integrated Recoil Lug: Each ring features a dedicated recoil lug designed to neutralize recoil momentum and ensure ultra-stable positioning on the rail.
- Magnum Compatibility: Engineered to withstand the kinetic energy of powerful calibers, making it ideal for ELR and PRS disciplines.
Features:
- Modular Precision: The two-piece ring design allows for customizable spacing on any Picatinny rail, providing perfect optic positioning for any rifle platform.
- Internal Ring Grooves: The inner surface of the rings features precision-milled grooves that create localized high-grip zones when tightened. This design eliminates the risk of micro-slippage during heavy recoil.
- Integrated SMAI Interface: Built-in SMAI-A ports allow for extensive customization, enabling shooters to attach various accessories to enhance their operational experience.
- Triangular Geometry: The SMAI interface is based on the triangle—the strongest and most stable geometric form in engineering—ensuring a secure hold even for heavy accessories.
- Drainage Channels: All structural openings are designed with drainage to ensure proper circulation of chemical solutions during the anodizing process. This guarantees a uniform, high-quality coating in all internal areas and threads.
- Premium Material: Manufactured from 7075-T6 aircraft-grade aluminum, the strongest aluminum alloy in the world.
- Superior Finish: Hard Anodized finish for maximum durability.
- High-End Fasteners: Equipped with high-quality stainless-steel screws featuring a durable dark anti-reflective coating.
Dimensions:
Specifications:
Name:
Scope Rings
Model:
RSM-01
Generation:
GEN 2
Mounting Base:
Picatinny
Accessory Interface:
SMAI-A
Material:
7075-T6 Aluminum
Coating:
Hard anodizing
