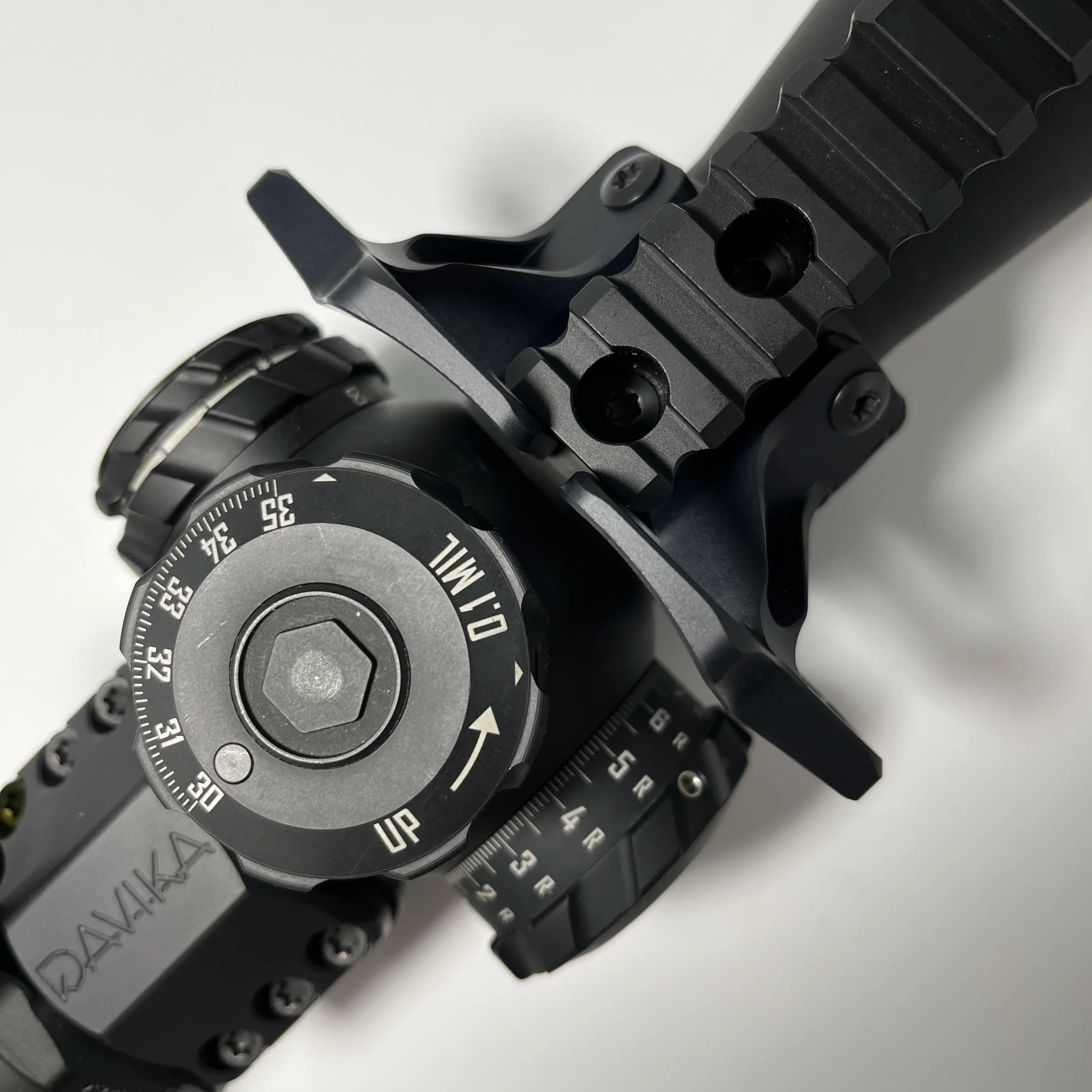

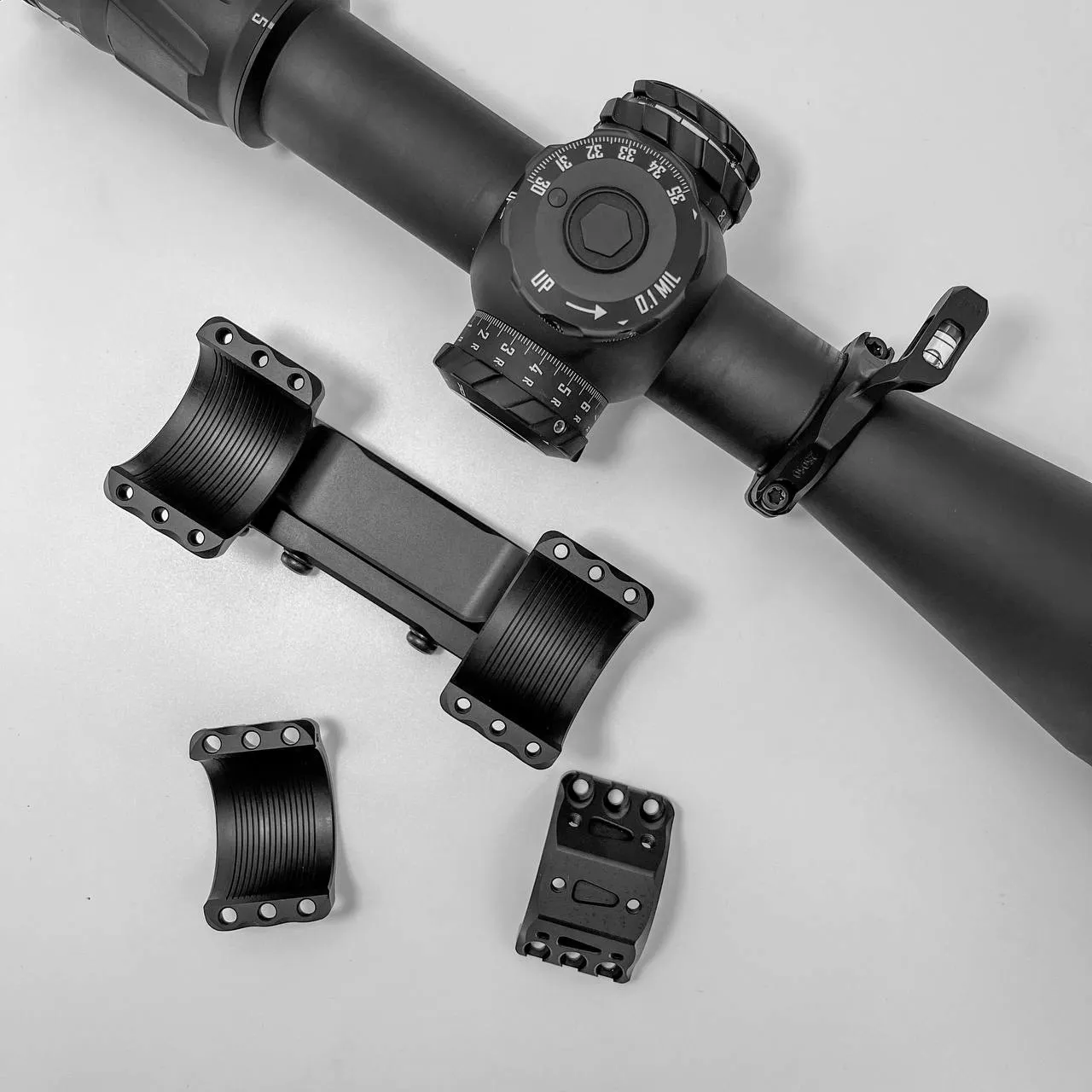

MSM-01 Scope Mount
Description:
The MSM-01 is a fixed scope mount specifically engineered for bolt-action rifles. This scope mount is designed to withstand the heavy recoil of magnum calibers while ensuring uncompromising zero retention and scope stability.
Modifications:
Diameter:
30
MM
34
MM
35
MM
36
MM
Tilt:
0
MIL
0
MOA
3
MIL
10.3
MOA
6
MIL
20.6
MOA
9
MIL
30.9
MOA
12
MIL
41.2
MOA
Height:
30
MM
34
MM
38
MM
Color:
Black
FDE

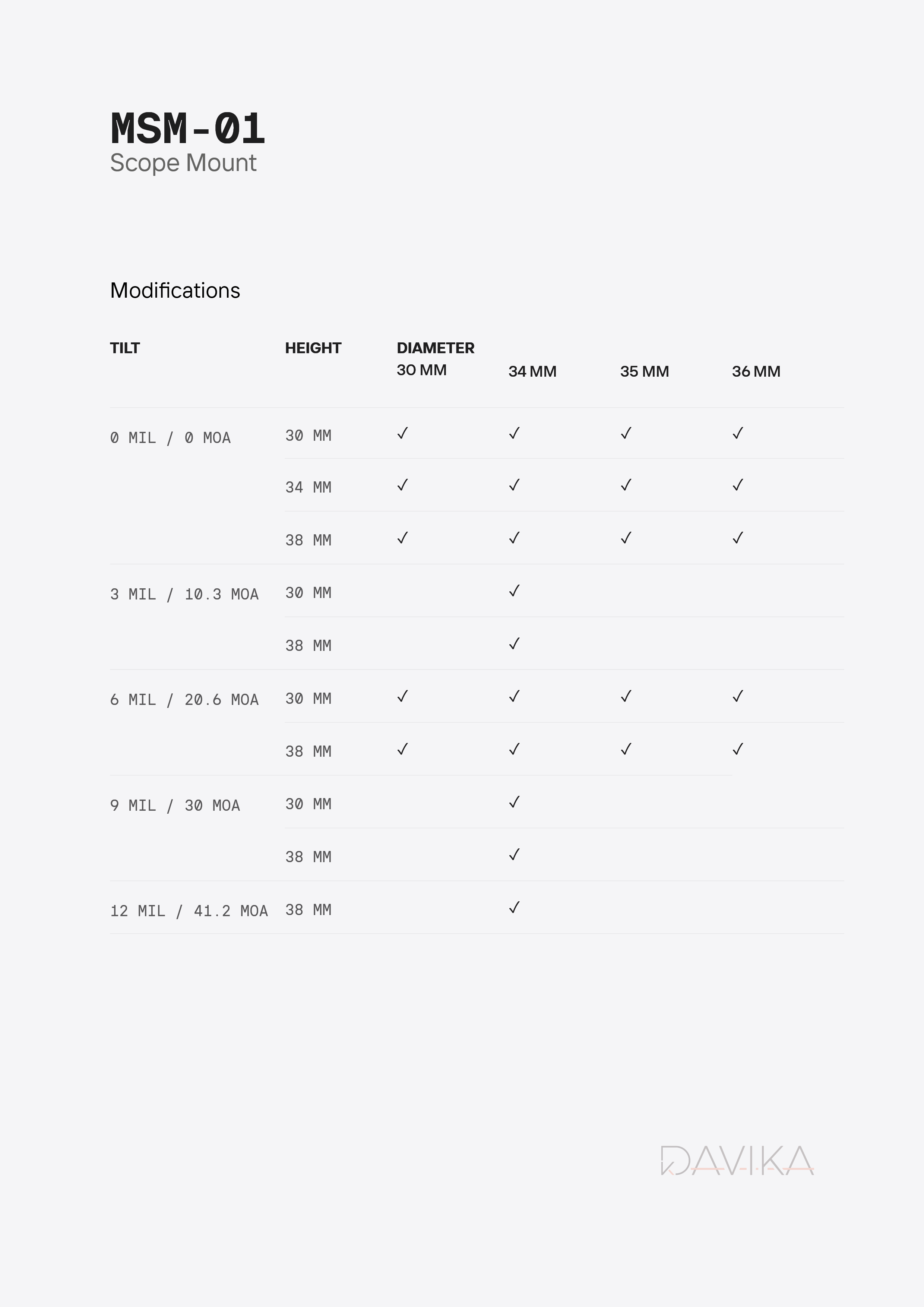

Modifications:
Available combinations.pdf
Platform Compatibility:
Bolt action rifles up to .338 LM
External/Internal Compatibility:
Optical sights with a tube diameter of 30mm to 36mm
Benefits:
- Optimized Mounting Geometry: Achieves perfect, repeatable positioning on the Picatinny rail with zero shift under fire.
- Precision Center Recess: The bottom mounting surface features a precision-milled longitudinal center recess. This ensures contact with the Picatinny rail occurs along two narrow parallel lines, minimizing the impact of rail imperfections and ensuring consistent re-zeroing after detachment.
- Milled Recoil Lug: The recoil lug features a center-cut design that limits the contact area within the Picatinny slot. By distributing clamping force over two narrow bearing surfaces, it neutralizes rail tolerance issues for ultra-stable positioning.
Features:
- Rigid Monolithic Design: Ensures maximum stability under the extreme kinetic energy of powerful calibers, including .308 Win, .300 NM, .338 LM.
- Internal Ring Grooves: The inner surface of the rings features precision-milled grooves that create localized high-grip zones when tightened. This design eliminates the risk of micro-slippage during heavy recoil.
- Integrated SMAI Interface: Built-in SMAI-A ports allow for extensive customization, enabling shooters to attach various accessories to enhance their operational experience.
- Triangular Geometry: The SMAI interface is based on the triangle—the strongest and most stable geometric form in engineering—ensuring a secure hold even for heavy accessories.
- Drainage Channels: All structural openings are designed with drainage to ensure proper circulation of chemical solutions during the anodizing process. This guarantees a uniform, high-quality coating in all internal areas and threads.
- Premium Material: Manufactured from 7075-T6 aircraft-grade aluminum, the strongest aluminum alloy in the world.
- Superior Finish: Hard Anodized finish for maximum durability.
- High-End Fasteners: Equipped with high-quality stainless-steel screws featuring a durable dark anti-reflective coating.

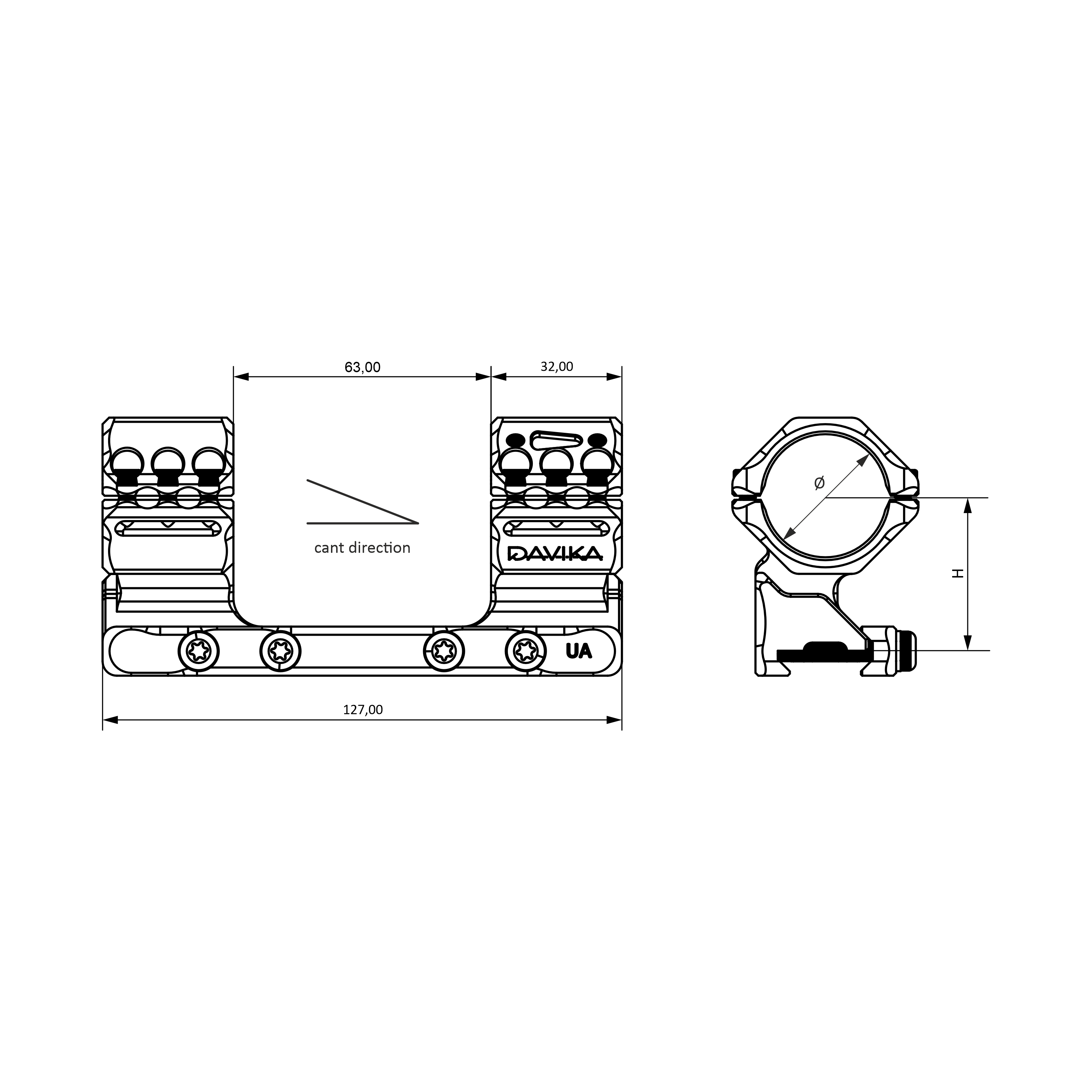

Dimensions:
Specifications:
Name:
Scope Mount
Model:
MSM-01
Generation:
GEN 2
Mounting Base:
Picatinny
Accessory Interface:
SMAI-A
Material:
7075-T6 Aluminum
Coating:
Hard anodizing
