MSM-02 Cantilever Scope Mount
Diameter:
30
MM
34
MM
35
MM
36
MM
Tilt:
0
MIL
0
MOA
6
MIL
20.6
MOA
Height:
38
MM
Color:
Black
FDE

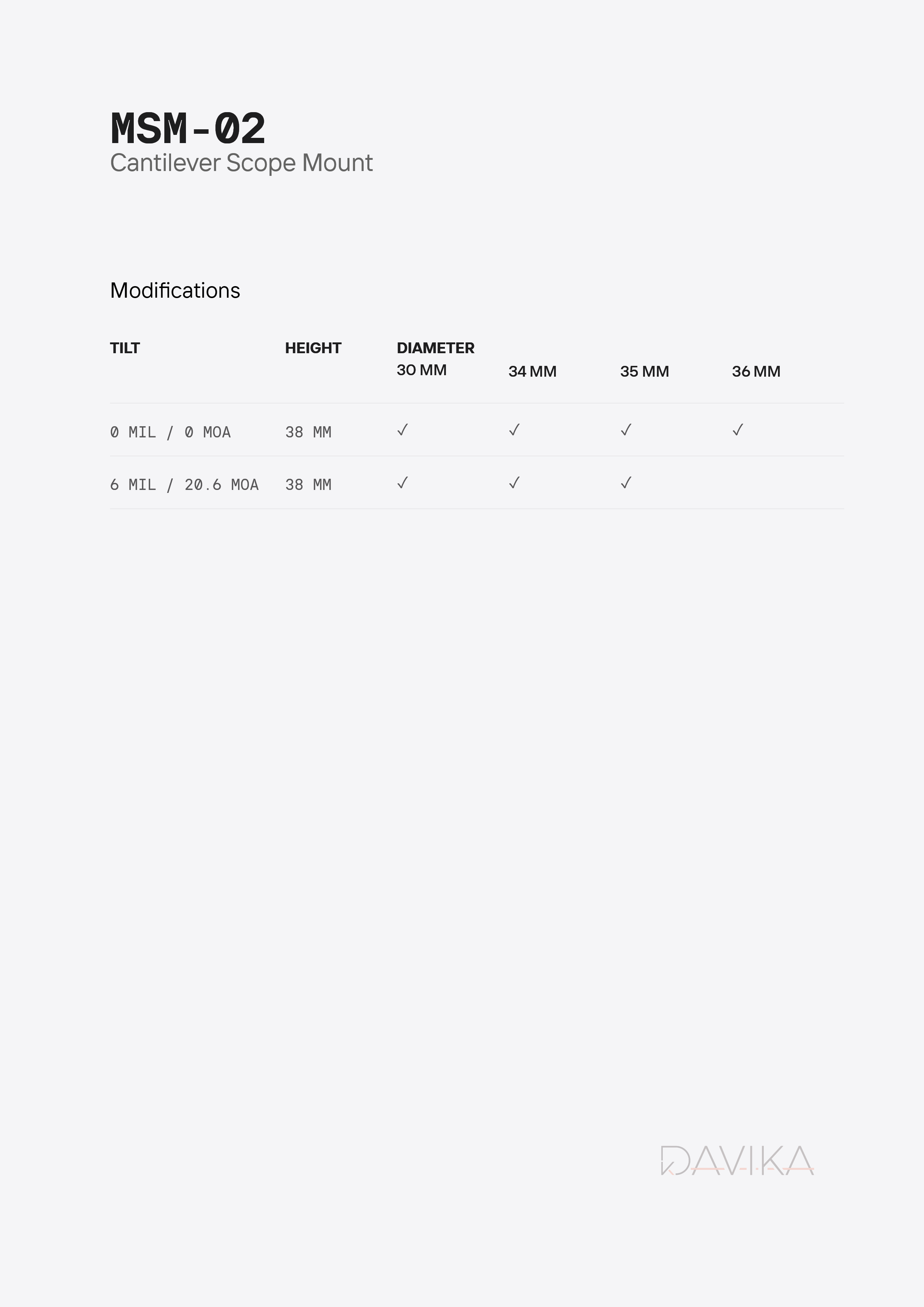

Variants:
Available combinations.pdf
Description

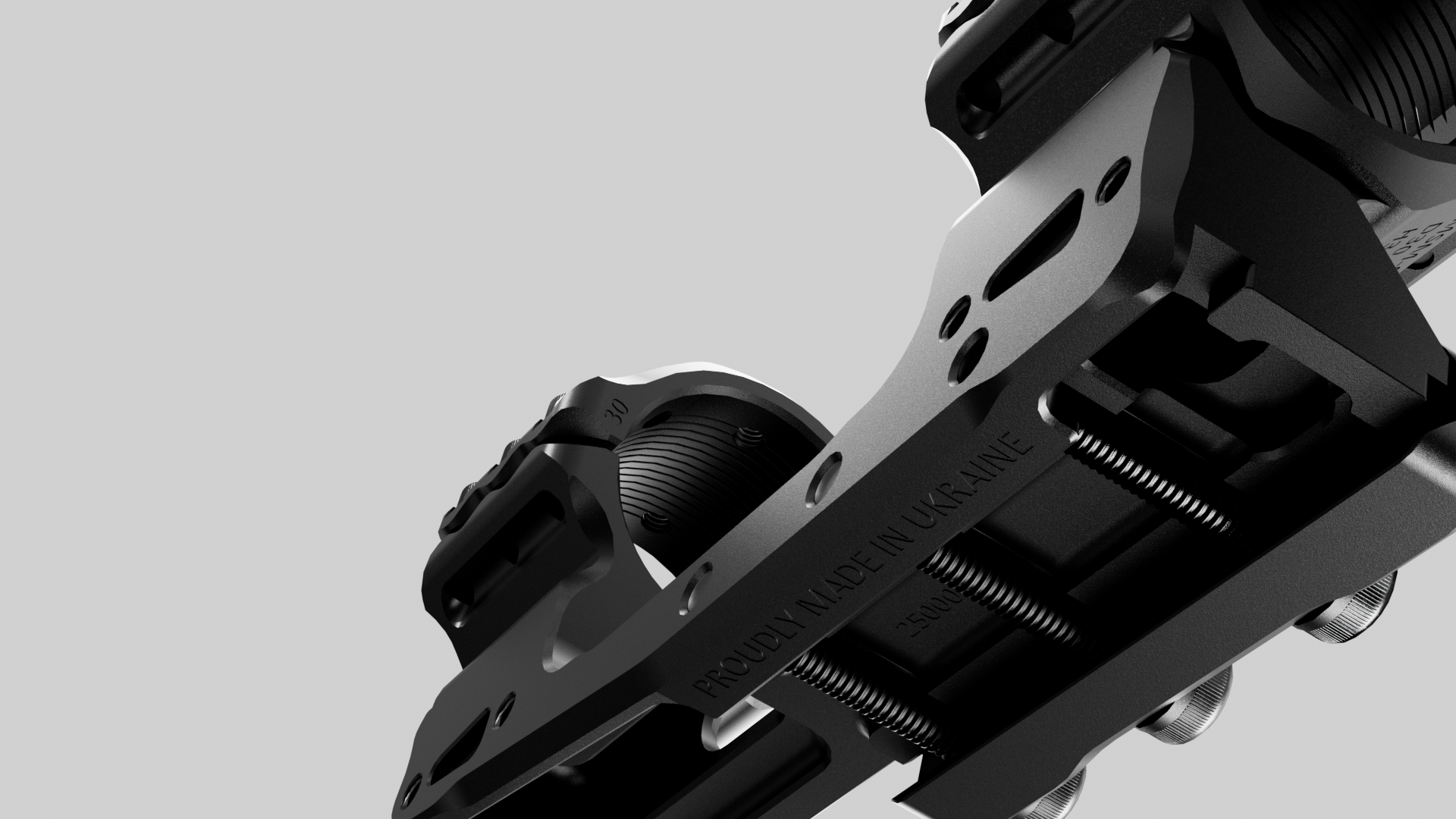

The MSM-02 is a fixed cantilever scope mount specifically engineered for AR-10 and AR-15 platforms. It features a lightweight yet exceptionally rigid cantilever design that ensures maximum comfort and optimal eye relief during fast-paced, dynamic shooting, while providing superior structural integrity required for the heavy recoil of AR-10 rifles.
Features
- Cantilever Design: Features an extended forward offset that allows the optic to be positioned further forward. This geometry ensures the mount remains exclusively on the upper receiver – the most rigid part of the AR platform-preventing "bridging" onto the handguard, which lacks the necessary rigidity for stable mounting.
- Optimal Eye Relief: The forward shift optimizes the distance between the objective lens and the shooter's eye, significantly improving ergonomics and target acquisition speed.
- Internal Ring Grooves: The inner surface of the rings features precision-milled grooves that create localized high-grip zones when tightened. This design eliminates the risk of micro-slippage during heavy recoil.
- Integrated SMAI Interface: Built-in SMAI-A ports allow for extensive customization, enabling shooters to attach various accessories to enhance their operational experience.
- Triangular Geometry: The SMAI interface is based on the triangle—the strongest and most stable geometric form in engineering—ensuring a secure hold even for heavy accessories.
- Drainage Channels: All structural openings are designed with drainage to ensure proper circulation of chemical solutions during the anodizing process. This guarantees a uniform, high-quality coating in all internal areas and threads.
- Premium Material: Manufactured from 7075-T6 aircraft-grade aluminum, the strongest aluminum alloy in the world.
- Superior Finish: Features a MIL-A-8625 Type III Hardcoat Anodized finish for maximum durability.
- High-End Fasteners: Equipped with high-quality stainless-steel screws featuring a durable dark anti-reflective coating.

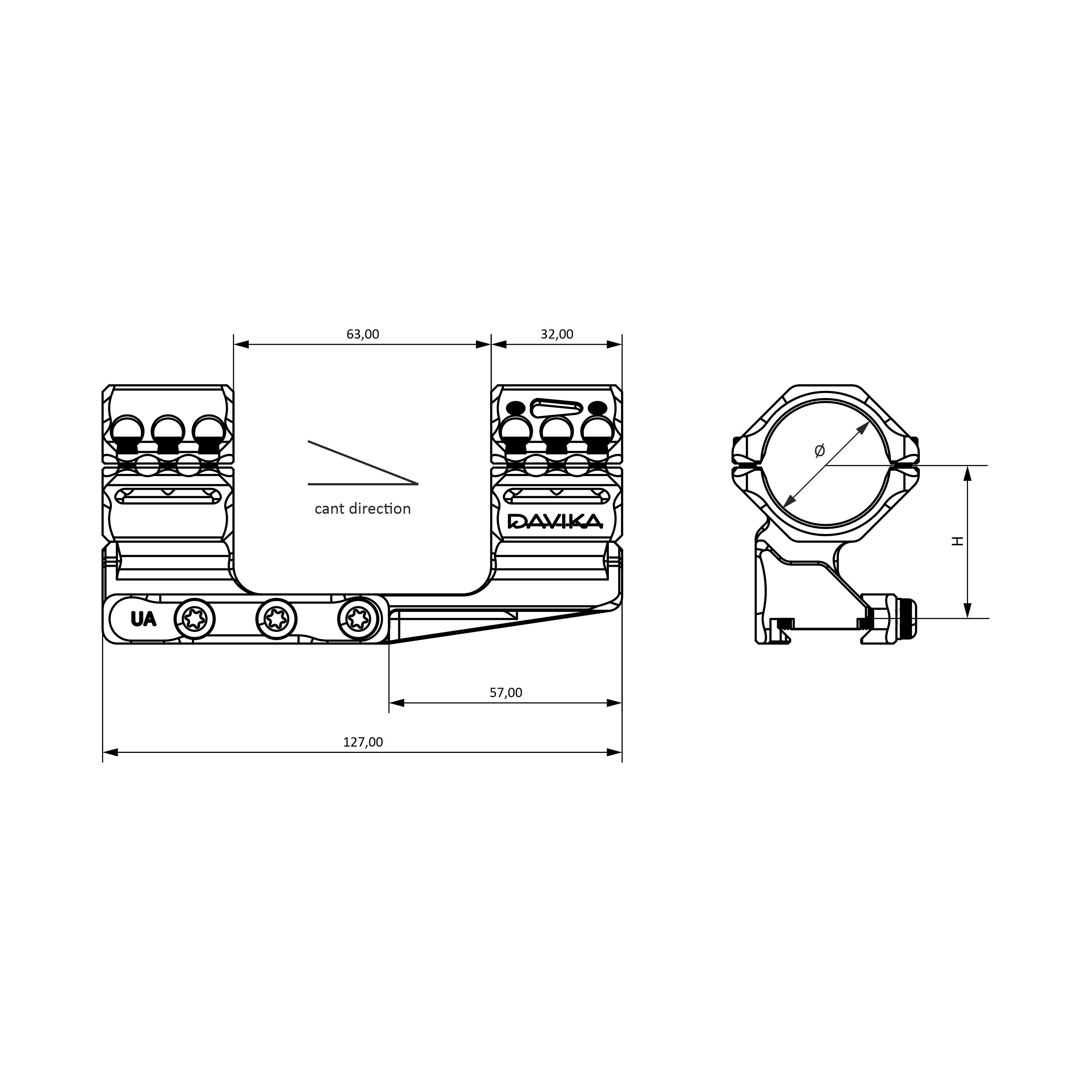

Dimensions
