TSM-01-QD-57H iRay RH25 / PFN640+ 57H QD Mount

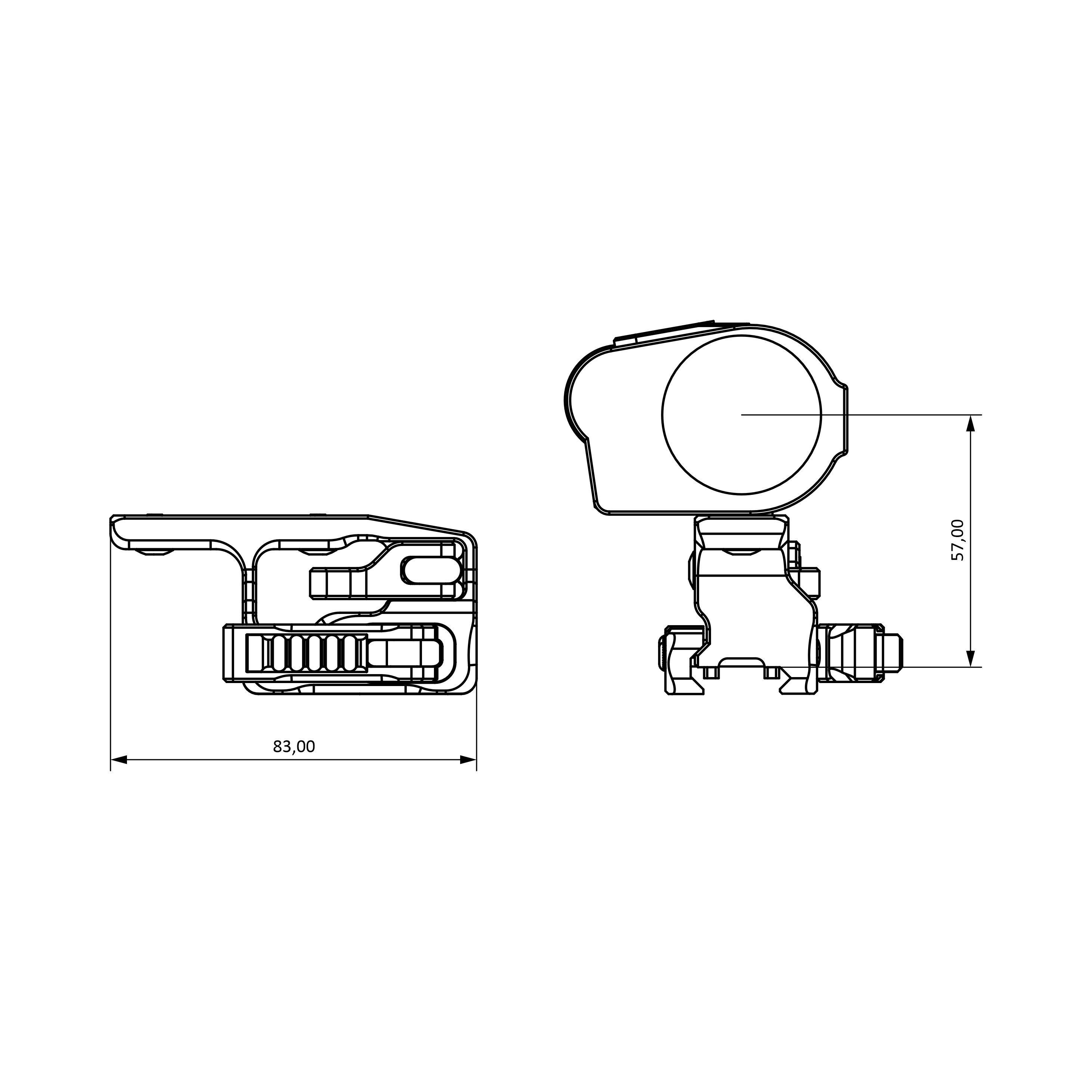

The TSM-01-QD-57H a high-performance, quick-detach multifunctional riser mount specifically engineered for the InfiRay (iRay) Rico Micro RH25 and PFN640+ V2 thermal devices. Featuring an industry-standard 57 mm (2.25") optical axis, the mount is designed with a rearward cantilever (offset). This ensures optimal eye relief and comfortable operation when wearing tactical gear or plate carriers, allowing for perfect alignment with the operator's eye.

The TSM-01-QD-57H is primarily positioned as a dedicated mounting solution for utilizing thermal devices as a primary optic. It features an integrated accessory interface, allowing for the addition of a secondary red dot sight mounted at an angle for rapid transitions between thermal and red dot aiming.

Furthermore, the TSM-01-QD-57H enables the thermal device to be used as a clip-on attachment in front of a red dot sight positioned at the same 2.25" height. This eliminates the need for additional risers or adapters, providing a cohesive aiming system.

• AR-15
• AR-10 / SR-25

iRay RH25 / PFN640+

• Integrated Tactical Hub: The front section of the mount features a specialized, quick-detach interface designed for the installation of a secondary aiming device, such as an offset red dot sight.
• Unified Optical Chain: When utilizing a thermal device as a clip-on attachment, the mount ensures a perfectly synchronized optical axis with the red dot and magnifier.
• RDM Ecosystem Integration: The TSM-01-QD-57H is engineered for seamless integration into the RDM system, supporting dynamic operational scenarios:

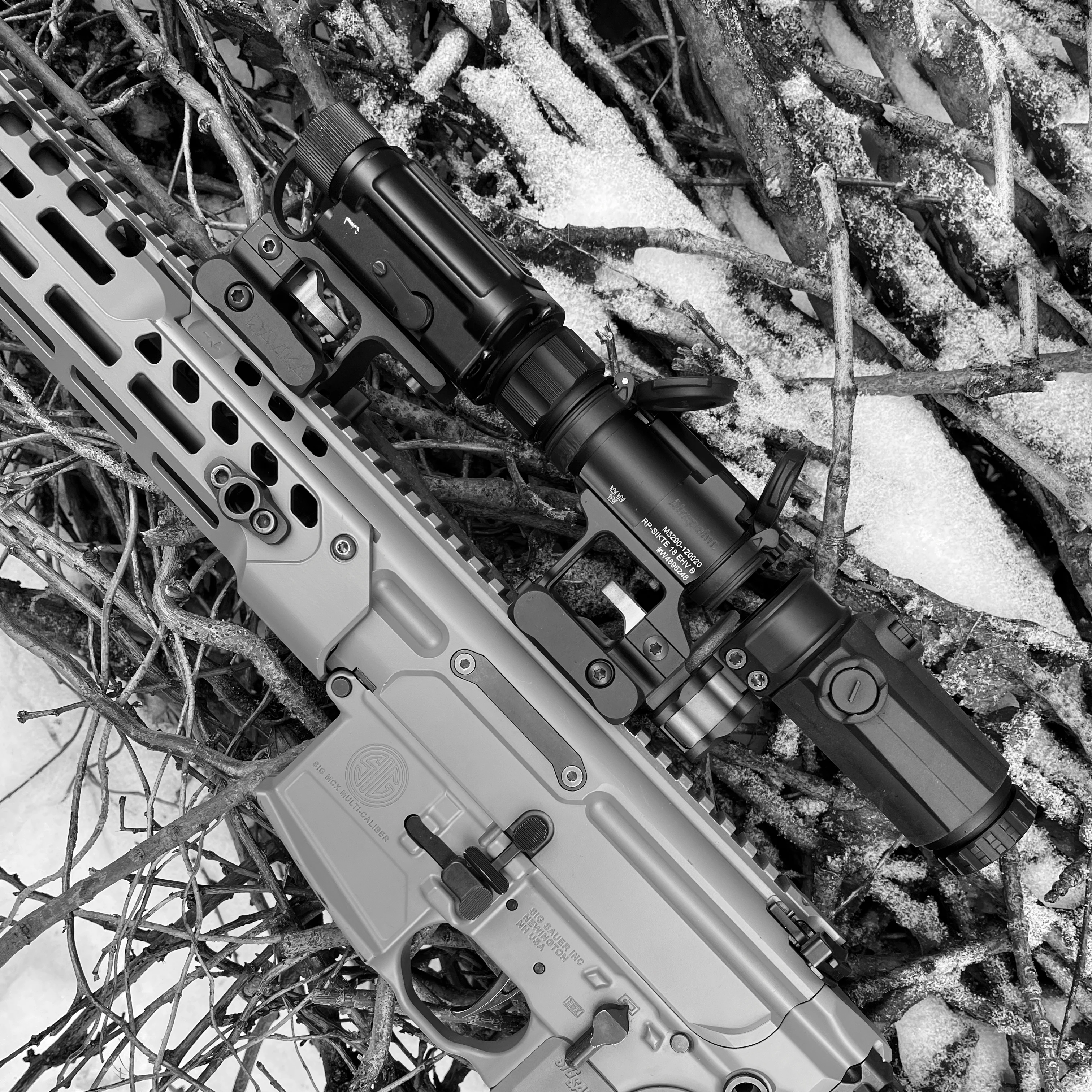

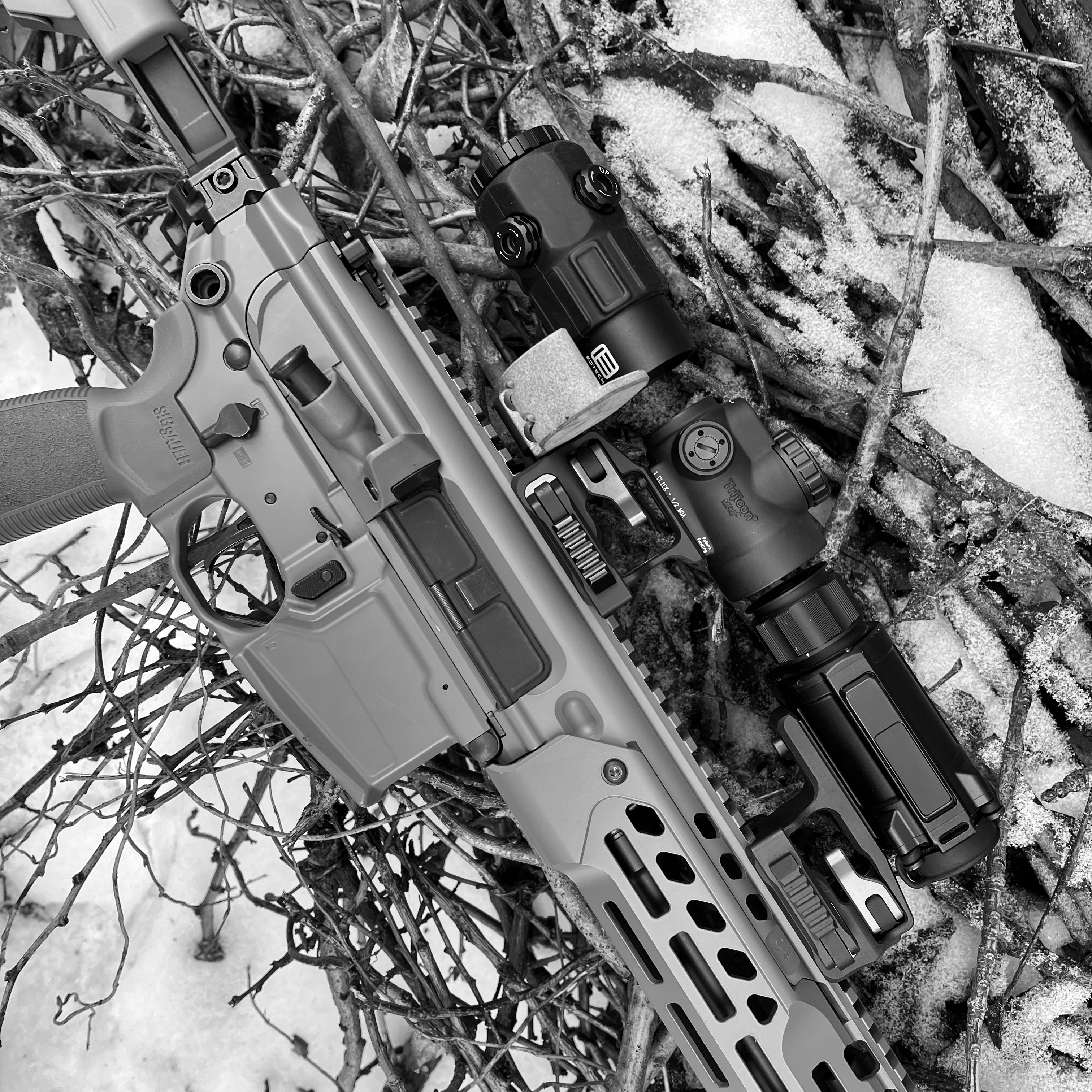

  • Daytime: Utilize a red dot on an RDM mount as the primary optic, with the ability to add an FTR magnifier as needed and attach the TSM-01-QD-57H as a thermal clip-on.
  • Nighttime: Rapidly remove the primary red dot and magnifier to install the TSM-01-QD-57H as the dedicated primary thermal sight.
  • These transitions are performed with zero loss of zero, ensuring consistent point-of-impact repeatability.
• Optimized Mounting Geometry: Achieves perfect, repeatable positioning on the Picatinny rail with zero shift under fire.
• Precision Center Recess: The mounting surface features a precision-milled longitudinal recess. By contacting the Picatinny rail along two narrow parallel lines, it minimizes the impact of rail surface imperfections for consistent re-zeroing.
• Advanced Recoil Lug Geometry: The recoil lug utilizes a center-cut design to distribute clamping force over two distinct bearing surfaces. This effectively neutralizes rail tolerance issues and prevents shifting under heavy recoil.
• Military-Grade Development: Engineered specifically to meet the demanding requirements of military snipers.
• Battle-Proven: Verified in real-world combat and extreme field conditions.

• Precision QD System: Features an eccentric quick-detach system with adjustable clamping tension, allowing for rapid mounting and removal without the need for additional tools.
• Safety Locking System: The ergonomic lever includes a dedicated locking button to prevent accidental release, ensuring maximum security under operational conditions.
• Return-to-Zero Repeatability: Engineered for high precision, the mounting system guarantees consistent return-to-zero performance, maintaining the point of impact after repeated detachment and reinstallation.
• Drainage Channels: All structural openings are designed with drainage to ensure proper circulation of chemical solutions during the anodizing process. This guarantees a uniform, high-quality coating in all internal areas and threads.
• Premium Material: Manufactured from 7075-T6 aircraft-grade aluminum, the strongest aluminum alloy in the world.
• Superior Finish: Features a MIL-A-8625 Type III Hardcoat Anodized finish for maximum durability.
• High-End Fasteners: Equipped with high-quality stainless-steel screws featuring a durable dark anti-reflective coating.
