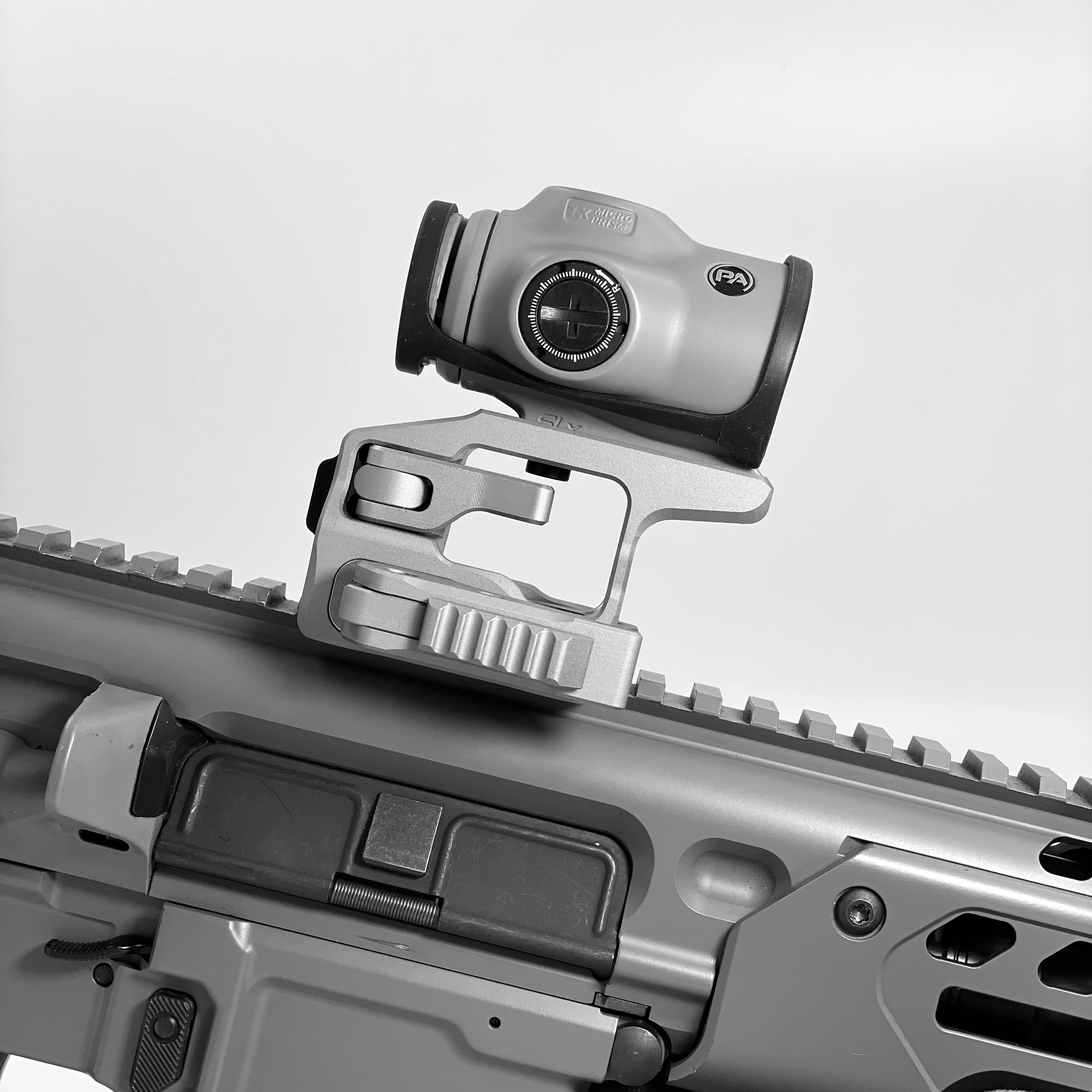

RDM-05-QD Primary Arms MicroPrism QD Mount

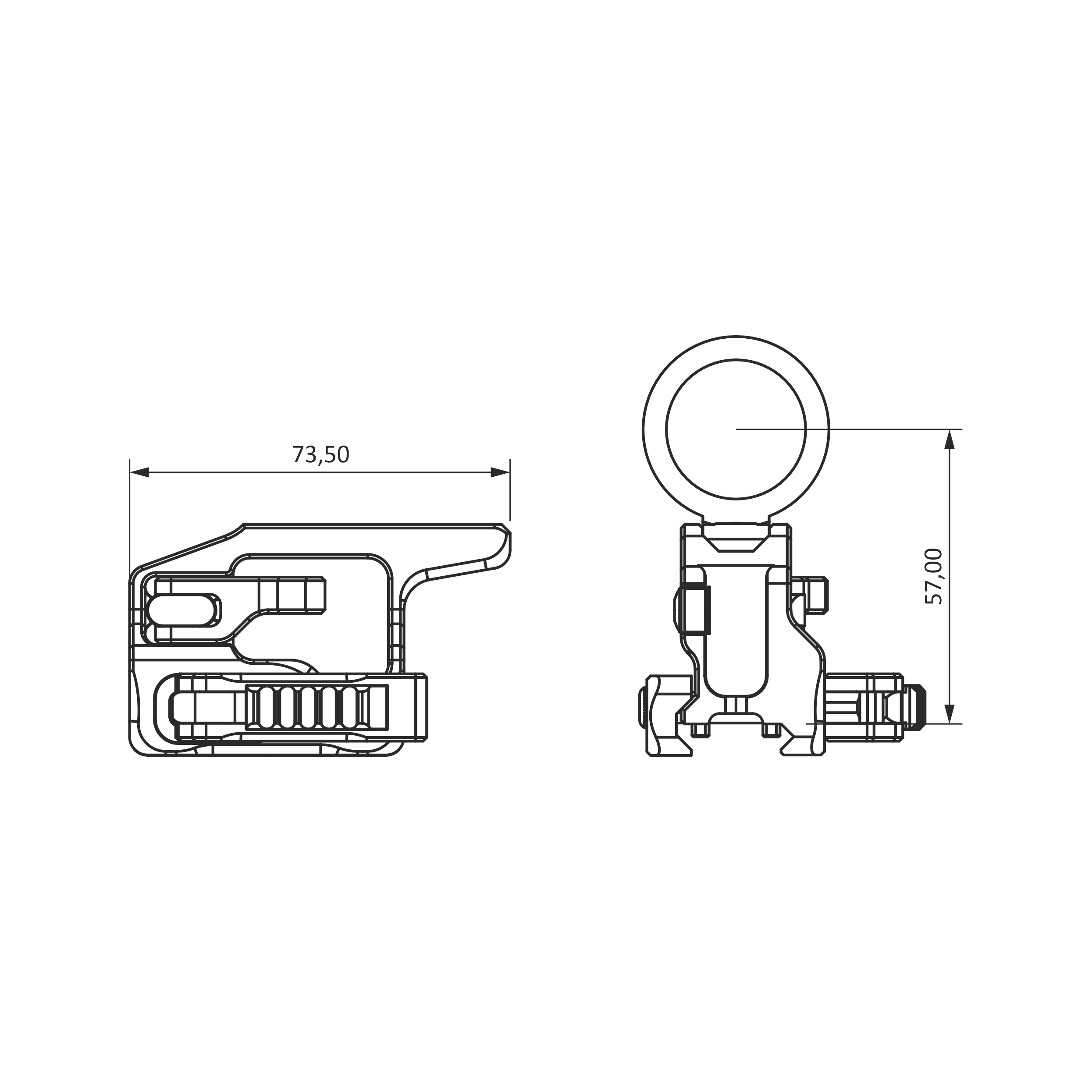

The RDM-05-QD is a dedicated mounting solution specifically engineered for Primary Arms MicroPrism optics. It enables a modular aiming configuration with an optical axis height of 57 mm (2.25"), ensuring optimal "heads-up" ergonomics and shooting stability when operating with modern tactical gear.

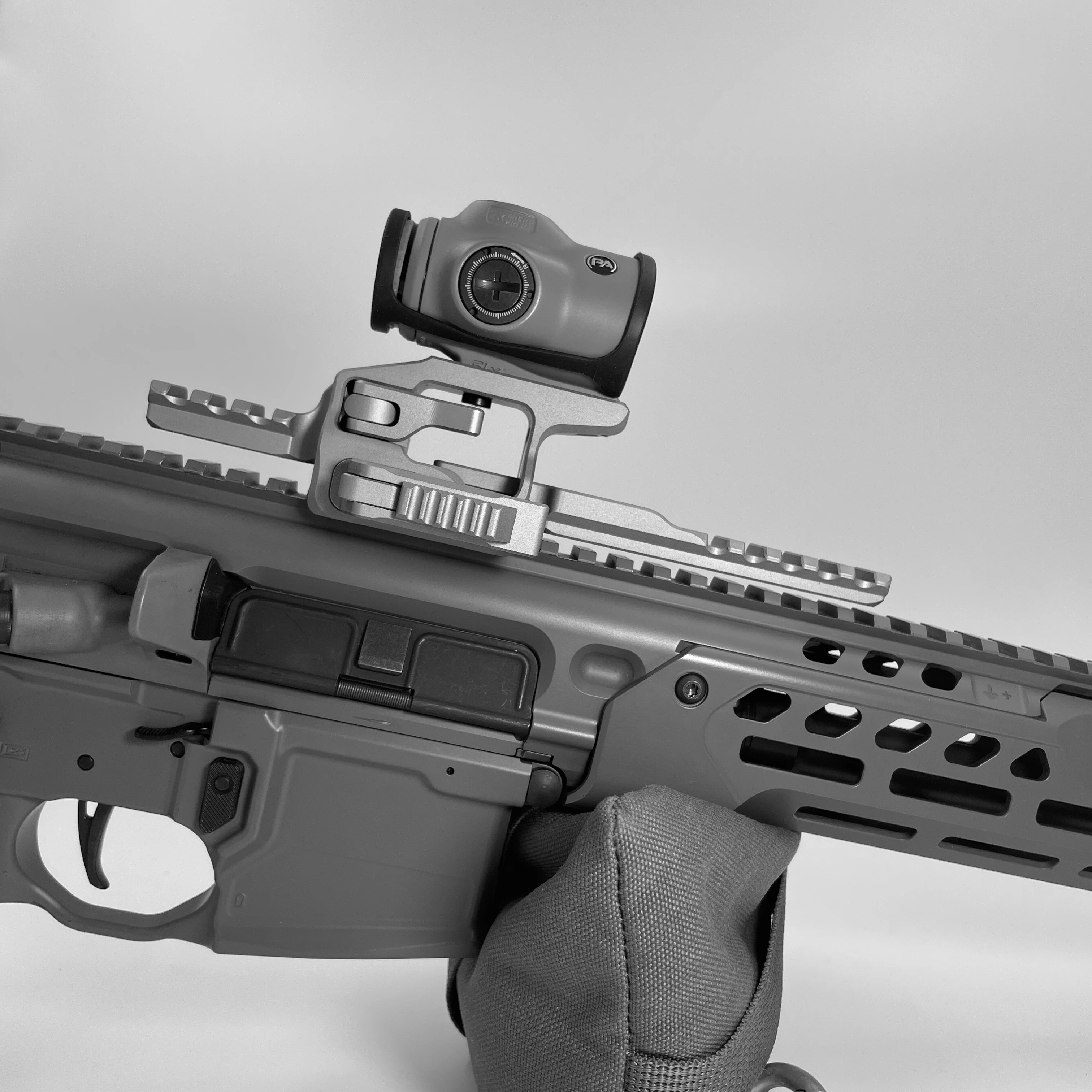

The mount features a front-facing SMAI-B interface for attaching Picatinny rail sections for laser aiming devices, along with a rear Dovetail QD interface for magnifiers. This allows the shooter to flexibly adapt the rifle's configuration for various engagement scenarios – from rapid close-quarters transitions to precise mid-range shots. As an integral part of the DAVIKA ecosystem, the RDM-05-QD delivers exceptional return-to-zero repeatability and battle-proven reliability in the most demanding environments.

• AR-15
• AR-10 / SR-25

Primary Arms MicroPrism

• Integrated Tactical Hub: The front-facing SMAI-B interface provides the perfect mounting point for Thermal Clip-On or Laser devices, while the rear features a Dovetail QD interface for magnifiers, ensuring perfect optical alignment and zero retention between devices.
• Optimized Mounting Geometry: Achieves perfect, repeatable positioning on the Picatinny rail with zero shift under fire.
• Precision Center Recess: The mounting surface features a precision-milled longitudinal recess. By contacting the Picatinny rail along two narrow parallel lines, it minimizes the impact of rail surface imperfections for consistent re-zeroing.
• Advanced Recoil Lug Geometry: The recoil lug utilizes a center-cut design to distribute clamping force over two distinct bearing surfaces. This effectively neutralizes rail tolerance issues and prevents shifting under heavy recoil.
• Military-Grade Development: Engineered specifically to meet the demanding requirements of military snipers.
• Battle-Proven: Verified in real-world combat and extreme field conditions.

• Precision QD System: Features an eccentric quick-detach system with adjustable clamping tension, allowing for rapid mounting and removal without the need for additional tools.
• Safety Locking System: The ergonomic lever includes a dedicated locking button to prevent accidental release, ensuring maximum security under operational conditions.
• Return-to-Zero Repeatability: Engineered for high precision, the mounting system guarantees consistent return-to-zero performance, maintaining the point of impact after repeated detachment and reinstallation.
• Drainage Channels: All structural openings are designed with drainage to ensure proper circulation of chemical solutions during the anodizing process. This guarantees a uniform, high-quality coating in all internal areas and threads.
• Premium Material: Manufactured from 7075-T6 aircraft-grade aluminum, the strongest aluminum alloy in the world.
• Superior Finish: Features a MIL-A-8625 Type III Hardcoat Anodized finish for maximum durability.
• High-End Fasteners: Equipped with high-quality stainless-steel screws featuring a durable dark anti-reflective coating.
