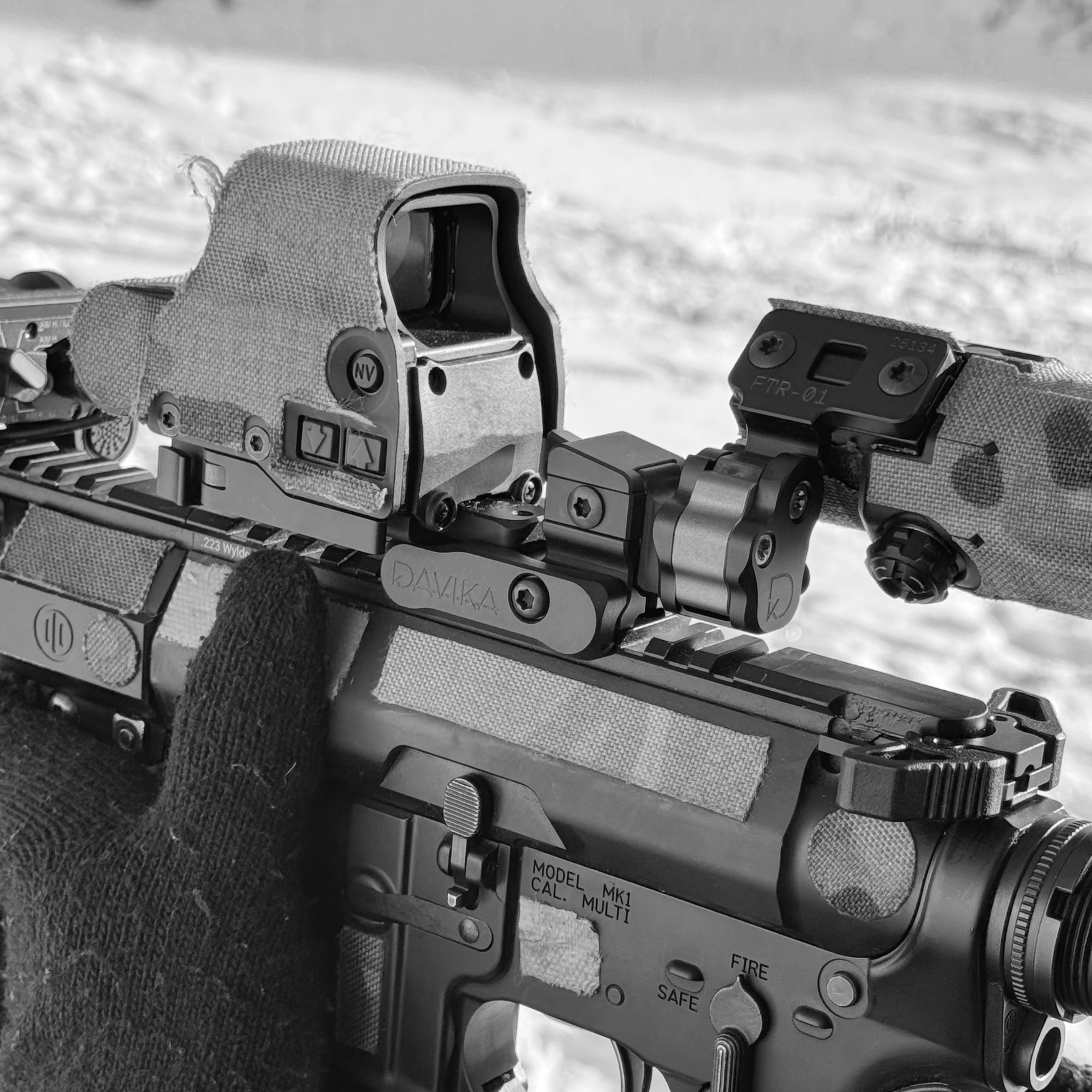

RDM-03-QD Tactical Riser QD

The RDM-03-QD is a universal quick-detach modular riser engineered to elevate any Picatinny-mounted red dot optic to the standard optical axis height of 57 mm (2.25"). As the most versatile component of the RDM series, it allows operators to raise their preferred optics to a "heads-up" posture, which is essential for modern tactical operations, Night Vision Device (NVD) usage, and enhanced situational awareness.

The RDM-03-QD provides a rock-solid platform that perfectly aligns the primary optic with a magnifier via the integrated rear DQD interface. It is the definitive solution for shooters who require a high-stability, modular system that compatable with a wide range of optics from various manufacturers.

• AR-15
• AR-10 / SR-25

Most Red Dots with standard factory Picatinny mounts, such as EOTech EXPS/XPS, Sig Romeo 8T, 9T, Vortex UH-1, and others.

• Platform Versatility: The only riser in the series that offers "plug-and-play" compatibility with any low-profile Picatinny-mounted optic.
• Integrated Tactical Hub: The front-facing SMAI-B interface provides the perfect mounting point for Thermal Clip-On or Laser devices, while the rear features a Dovetail QD interface for magnifiers, ensuring perfect optical alignment and zero retention between devices.
• Optimized Mounting Geometry: Achieves perfect, repeatable positioning on the Picatinny rail with zero shift under fire.
• Precision Center Recess: The mounting surface features a precision-milled longitudinal recess. By contacting the Picatinny rail along two narrow parallel lines, it minimizes the impact of rail surface imperfections for consistent re-zeroing.
• Advanced Recoil Lug Geometry: The recoil lug utilizes a center-cut design to distribute clamping force over two distinct bearing surfaces. This effectively neutralizes rail tolerance issues and prevents shifting under heavy recoil.
• Military-Grade Development: Engineered specifically to meet the demanding requirements of military snipers.
• Battle-Proven: Verified in real-world combat and extreme field conditions.

• Universal Picatinny Elevation: Elevates any optic with a standard Picatinny mount to the tactical 2.25" (57 mm) height
• Precision QD System: Features an eccentric quick-detach system with adjustable clamping tension, allowing for rapid mounting and removal without the need for additional tools.
• Safety Locking System: The ergonomic lever includes a dedicated locking button to prevent accidental release, ensuring maximum security under operational conditions.
• Return-to-Zero Repeatability: Engineered for high precision, the mounting system guarantees consistent return-to-zero performance, maintaining the point of impact after repeated detachment and reinstallation.
• Drainage Channels: All structural openings are designed with drainage to ensure proper circulation of chemical solutions during the anodizing process. This guarantees a uniform, high-quality coating in all internal areas and threads.
• Premium Material: Manufactured from 7075-T6 aircraft-grade aluminum, the strongest aluminum alloy in the world.
• Superior Finish: Features a MIL-A-8625 Type III Hardcoat Anodized finish for maximum durability.
• High-End Fasteners: Equipped with high-quality stainless-steel screws featuring a durable dark anti-reflective coating.
