MSM-04-QD Cantilever Quick Detach Scope Mount
Diameter:
30
MM
34
MM
35
MM
36
MM
Tilt:
0
MIL
0
MOA
6
MIL
20.6
MOA
Height:
38
MM
Color:
Black
FDE
Variants:

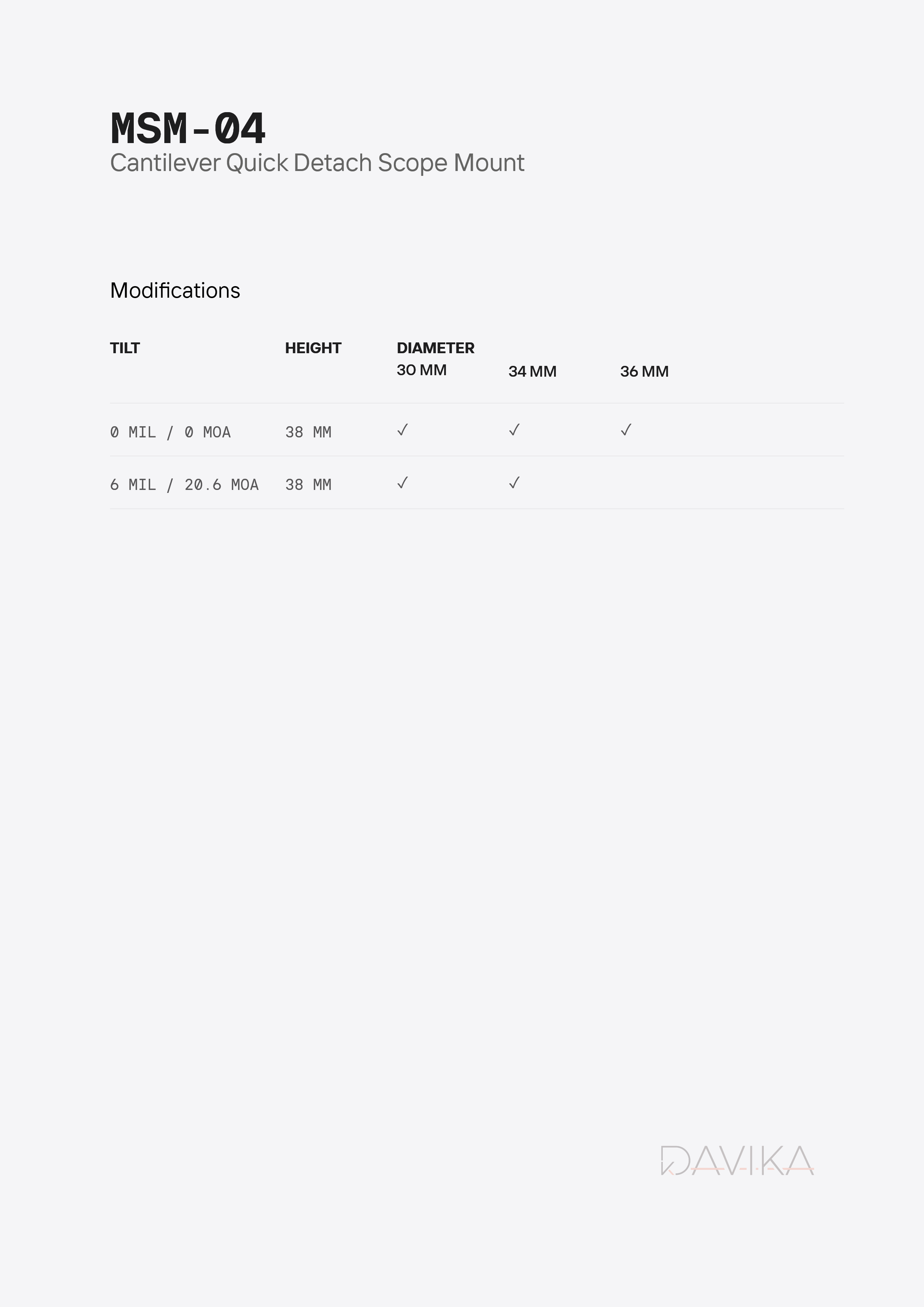

Available combinations.pdf
Description
The MSM-04-QD is a Quick Detach Cantilever scope mount specifically engineered for AR-10 and AR-15 platforms. Its extended forward offset design ensures maximum comfort and optimal eye relief during fast-paced, dynamic shooting, while the precision QD mechanism guarantees zero retention and perfect return-to-zero repeatability.
Features
- Cantilever QD Hybrid Design: Combines the strategic advantages of an extended forward offset with a quick-detach system.
- Optimal Upper Receiver Mounting: The extended geometry allows the optic to be positioned further forward, ensuring the mount remains exclusively on the upper receiver to maintain maximum structural rigidity and prevent "bridging".
- Optimal Eye Relief: The forward shift optimizes the distance between the objective lens and the shooter's eye, significantly improving ergonomics and target acquisition speed.
- Precision QD System: Features an eccentric quick-detach system with adjustable clamping tension, allowing for rapid mounting and removal without the need for additional tools.
- Safety Locking System: The ergonomic lever includes a dedicated locking button to prevent accidental release, ensuring maximum security under operational conditions.
- Return-to-Zero Repeatability: Engineered for high precision, the mounting system guarantees consistent return-to-zero performance, maintaining the point of impact after repeated detachment and reinstallation.
- Internal Ring Grooves: The inner surface of the rings features precision-milled grooves that create localized high-grip zones when tightened. This design eliminates the risk of micro-slippage during heavy recoil.
- Integrated SMAI Interface: Built-in SMAI-A ports allow for extensive customization, enabling shooters to attach various accessories to enhance their operational experience.
- Triangular Geometry: The SMAI interface is based on the triangle—the strongest and most stable geometric form in engineering—ensuring a secure hold even for heavy accessories.
- Drainage Channels: All structural openings are designed with drainage to ensure proper circulation of chemical solutions during the anodizing process. This guarantees a uniform, high-quality coating in all internal areas and threads.
- Premium Material: Manufactured from 7075-T6 aircraft-grade aluminum, the strongest aluminum alloy in the world.
- Superior Finish: Features a MIL-A-8625 Type III Hardcoat Anodized finish for maximum durability.
- High-End Fasteners: Equipped with high-quality stainless-steel screws featuring a durable dark anti-reflective coating.

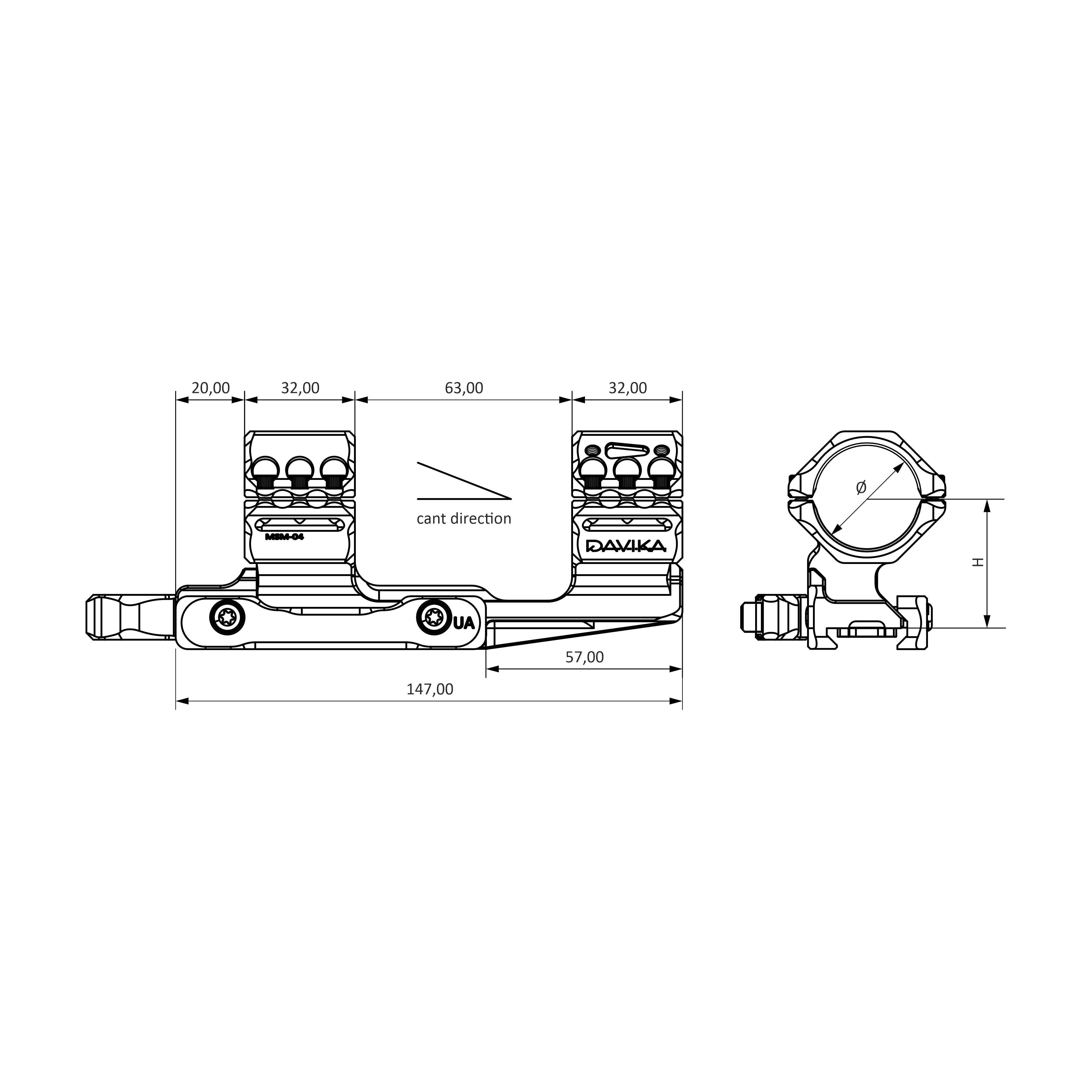

Dimensions
