MSM-03-QD Quick Detach Scope Mount
Diameter:
30
MM
34
MM
35
MM
36
MM
Tilt:
0
MIL
0
MOA
6
MIL
20.6
MOA
Height:
34
MM
38
MM
Color:
Black
FDE
Variants:

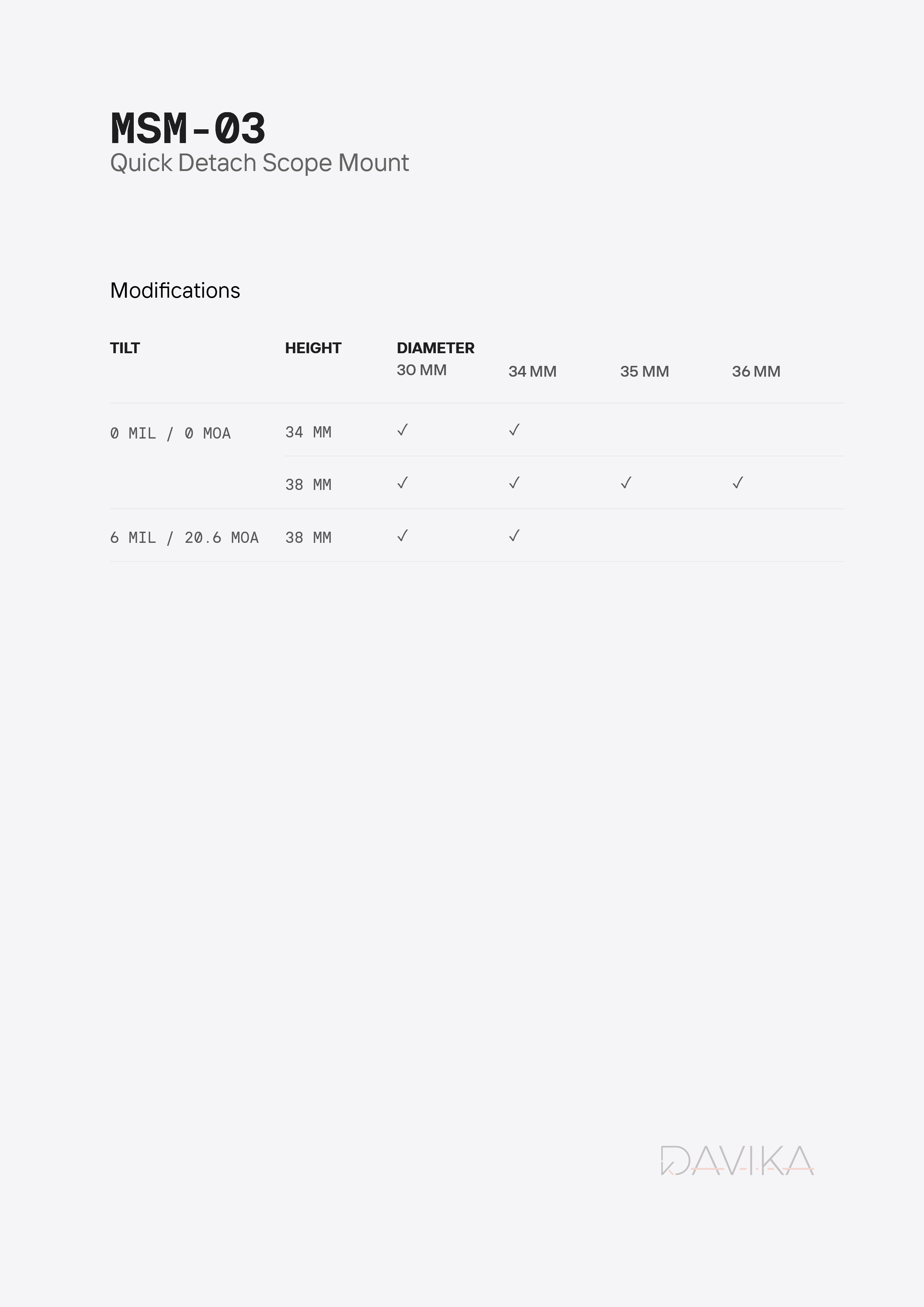

Available combinations.pdf
Description
The MSM-03-QD is a Quick Detach scope mount specifically engineered for bolt-action rifles. Designed to withstand the heavy recoil of magnum calibers, the MSM-03-QD ensures uncompromising zero retention and features a high-precision QD mechanism that guarantees perfect return-to-zero repeatability.
Features
- Precision QD System: Features an eccentric quick-detach system with adjustable clamping tension, allowing for rapid mounting and removal without the need for additional tools.
- Safety Locking System: The ergonomic lever includes a dedicated locking button to prevent accidental release, ensuring maximum security under operational conditions.
- Return-to-Zero Repeatability: Engineered for high precision, the mounting system guarantees consistent return-to-zero performance, maintaining the point of impact after repeated detachment and reinstallation.
- Internal Ring Grooves: The inner surface of the rings features precision-milled grooves that create localized high-grip zones when tightened. This design eliminates the risk of micro-slippage during heavy recoil.
- Integrated SMAI Interface: Built-in SMAI-A ports allow for extensive customization, enabling shooters to attach various accessories to enhance their operational experience.
- Triangular Geometry: The SMAI interface is based on the triangle—the strongest and most stable geometric form in engineering—ensuring a secure hold even for heavy accessories.
- Drainage Channels: All structural openings are designed with drainage to ensure proper circulation of chemical solutions during the anodizing process. This guarantees a uniform, high-quality coating in all internal areas and threads.
- Premium Material: Manufactured from 7075-T6 aircraft-grade aluminum, the strongest aluminum alloy in the world.
- Superior Finish: Features a MIL-A-8625 Type III Hardcoat Anodized finish for maximum durability.
- High-End Fasteners: Equipped with high-quality stainless-steel screws featuring a durable dark anti-reflective coating.

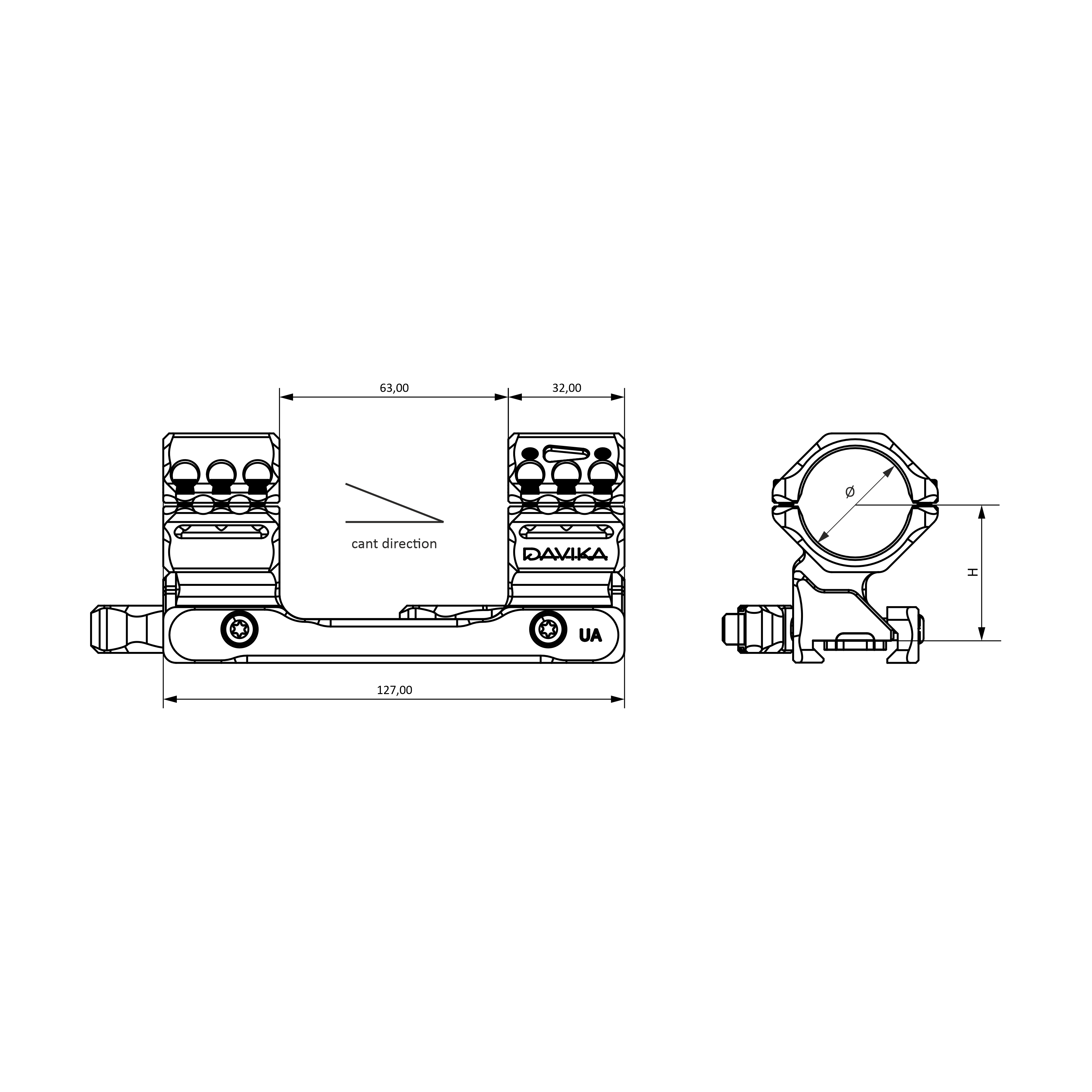

Dimensions
